Desiccant Dryers for Plastics

Desiccant Dryers for Plastics

In our factory, desiccant dryer for plastics is our main products. They are some desiccant rotors and desiccant wheels made with honeycomb structure and molecular sieve as the desiccant medium, slowly rotary working with around 8-12 Revolutions per hour.

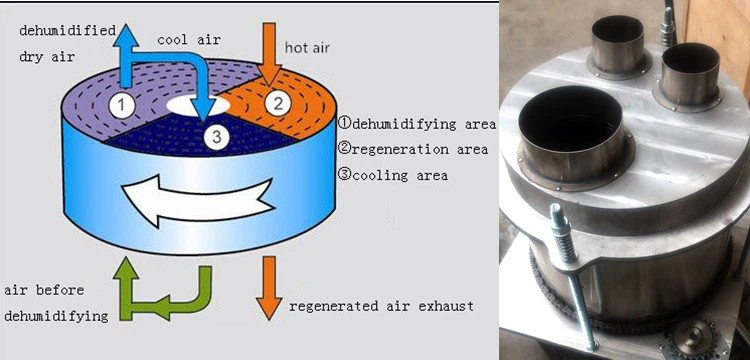

In the plastic desiccant dryer system of Desiccant Dryer for Plastic Resin, there are dehumidifying zone and regenerative zone. Dehumidification and regeneration process is happening at the same time, the air is constantly being desiccant, hot air constantly do regeneration, cycling working, so as to ensure the desiccant dryer running continuously and stably

Plastic Pellet Dryer consist of not only the honeycomb structure wheels, but also in the upper and lower ends equipped with the end covers.The upper end cover is provided with a dehumidification air outlet, regeneration air exhaust outlet and a dehumidified air return inlet. At the same time, it is equipped with a driving device to rotate the honeycomb wheel. The driving is a combination of motor and gear. Driven by a motor, the desiccant dryer slowly rotary continuously to do desiccant for the plastic pellets.

Since the Desiccant Dryers for Plastics, the desiccant medium is molecular sieve, so, the hot air temperature to do regeneration should be a littler higher than other desiccant dryer. Generally, the temperature should be around 160-200 degrees Celsius with better.

In plastics industry, the dehumidification and desiccant requirement to the dew point generally is -40℃, in some high standard cases, the dew point can reach -50℃. many high precision industries are choosing low dew point desiccant dryers.

In the true cases for using our rotary desiccant rotors, at 25 degrees Celsius, the TD can reach -76.8℃.

The desiccant dryers for plastics from our factor, they are high temperature resistance, acid and alkali resistance, average service life with 5-8 years depending on the plastic material property.

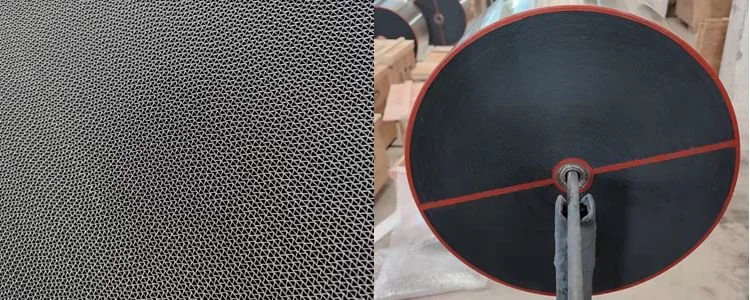

Cellular honeycomb structure with 1.8mm by 3.5mm

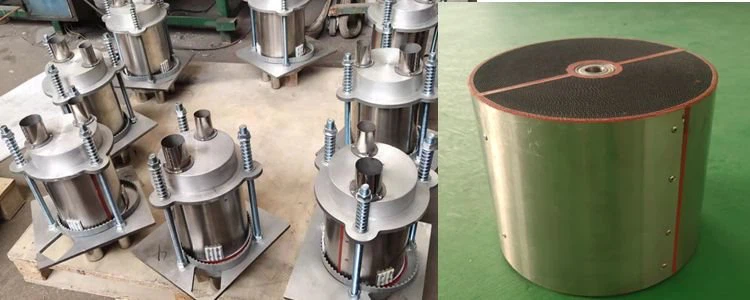

All these products are Desiccant Dryers for Plastics from our workshop

Our Workshop
