Silica Gel Dehumidifier

Silica Gel Dehumidifier

In our factory, Silica Gel Dehumidifier is one of moisture adsorption dehumidifier with continual rotary dehumidifying. The difference with other dehumidifiers, our desiccant dehumidifier made with honeycomb nest glass fiber with 82% activated silica gel

Or compound with molecular sieve. They are suitable for super desiccant and large volume air desiccant requirements in industrial and commercial dehumidifying system.

Description

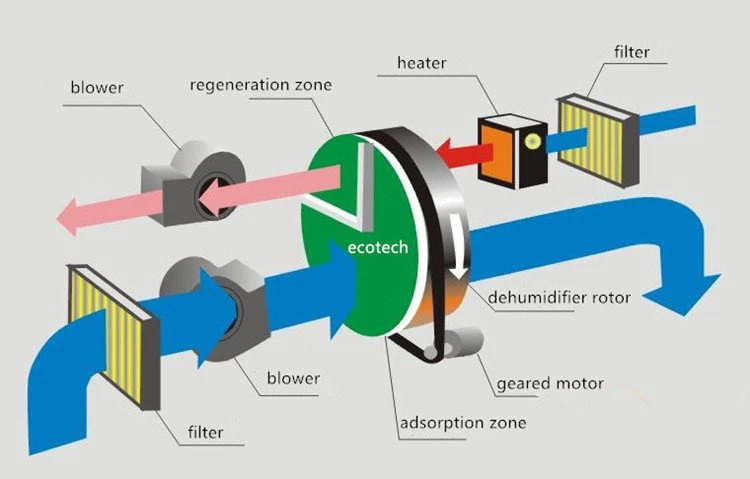

For Silica Gel Dehumidifier, there are desiccant area and regeneration area, sometimes, it's also need the cooling area to get the extremely dry air, like as in the pharmaceutical industry and lithium battery industry.

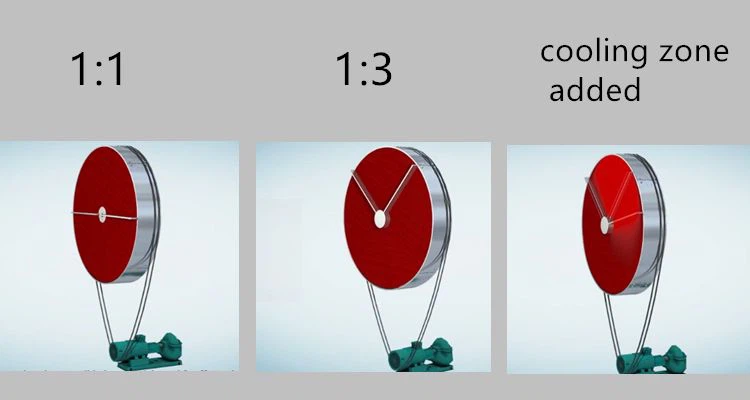

The dehumidifier rotates slowly at the speed of 8-10 revolutions per hour to ensure that the whole desiccant with a continuous process. Ratio of desiccant area and regenerative area have three models as following

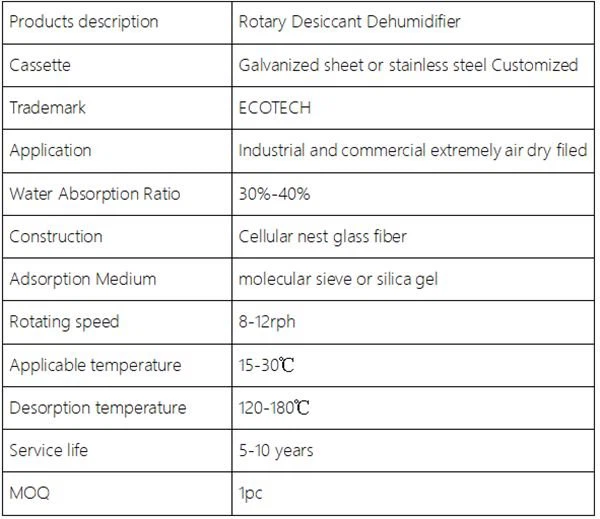

Basic info.

Product Feature

1. The central unit of Silica Gel Dehumidifier can be replacement. Just make sure the right size in the dehumidifying system,we make sure our desiccant dehumidifier with same moisture adsorption performance.

2. Our Silica Gel Dehumidifiers are fire resistance and they can be dust washable. In the body of dehumidifier, all parts are high temperature more than 300 Celsius degrees.

3. Hot air regenerative, when the moisture adsorption saturation, that needs the hot air to do regeneration, that mean desorption. Only after desorption, the Silica Gel Dehumidifier can continue to adsorption the moisture. The hot air temperature require with 100-120 Celsius degrees with better.

Construction and Details

Honeycomb nest with integrate models

Silica Gel Dehumidifier construction details from China ECOTECH

These are the important two parts for desiccant dehumidifier central unit

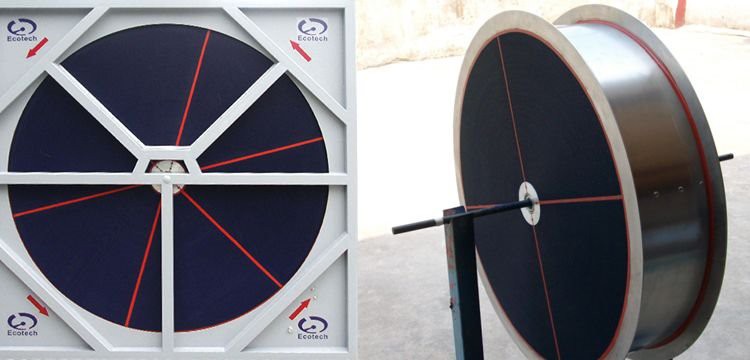

These are different type of Silica Gel Dehumidifier for reference, we can customized made other type desiccant dehumidifier as long as the structure with honeycomb nest and glass fiber with Silica Gel adsorption working principle.

We are Foshan Nanhai YITAIKE air handling equipment company, 15 years in making desiccant dehumidifiers.

Our Workshop
