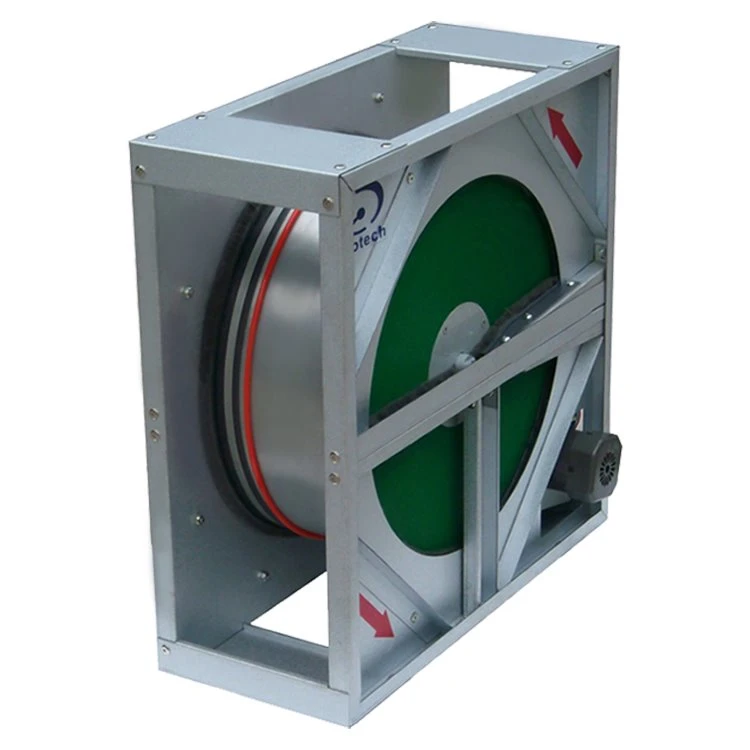

Heat Recovery Air Handling Unit in our factory, we called them with rotary Air Recuperator or Energy Recovery Wheel. The core is a cellular wave wheel with special metal foil as carrier and turns continuously at a speed of 10-20 Revolutions Per Minute.

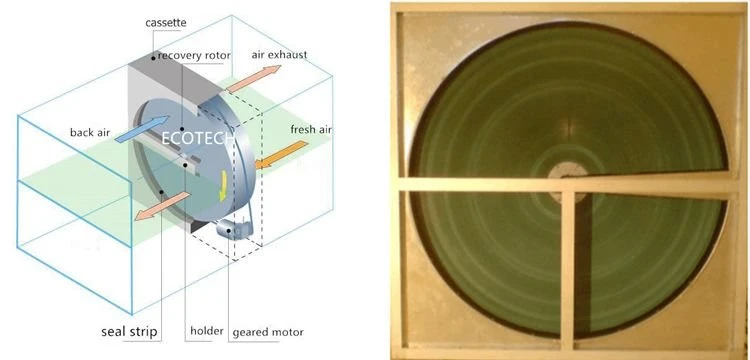

The wheel of Heat Recovery Air Handling Unit is equipped in metal cassette box which is a left-right or upper-down partition and driving by a belt through a transmission device. In winter, indoor exhaust air is filtered and then processed by the heat recovery wheel, the honeycomb cellular body temperature increases and the moisture content increases. When the recovery unit core rotates and contacts with the outdoor low temperature fresh air, the thermal and humidity being released to the fresh air heat up and humidifying. This is the course of heat recovery. In Summer, it's on the contrary processing.

Heat Recovery Air Handling Unit the surface is polished and cut by special processing technology to ensure the smooth surface. When the unit diameter within 2000mm, the horizontal deviation distance is less than 2mm. With such standard and structure, the clearance between all sections and the mechanical seal brush can be very even and smooth, which can minimizes the air handling leakage rate with good heat recovery efficiency.

Normally, the thickness of honeycomb carrier metal foil is 0.05mm, 0.08mm and 0.12mm for choice.heat recovery air handling unit wheel thickness with 200mm or 270mm for choice. Of course, the diameter of the wheel can be customized to any size from 200mm to 5000mm.

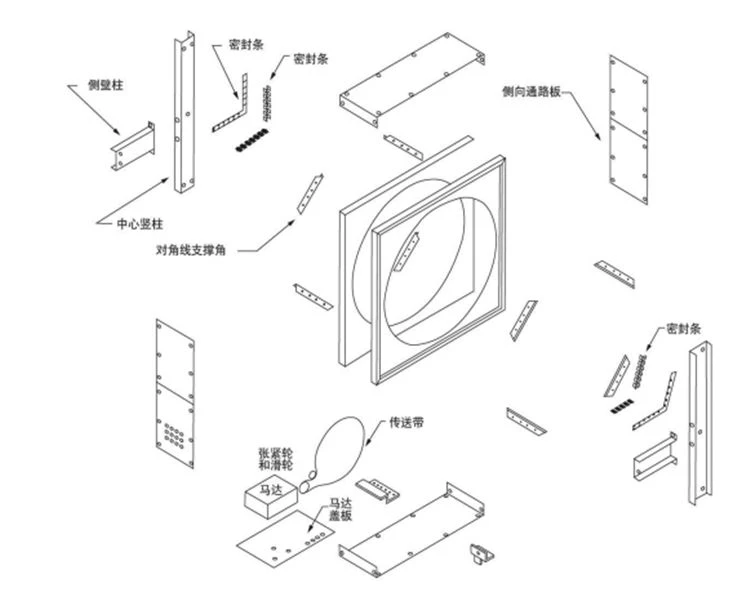

Cassette box structure as following

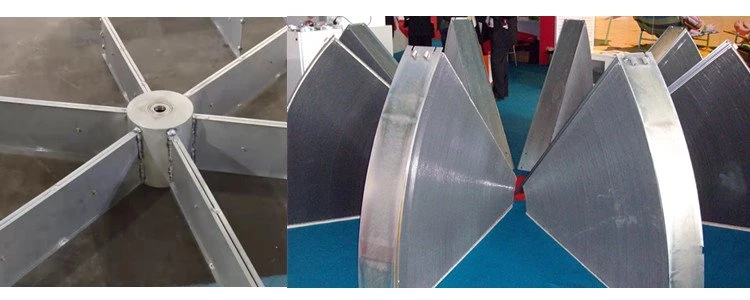

When air handling volume with too large requirement, the recovery core unit can be designed with segmented type.

We are good at making the honeycomb structure with rotary heat recovery air handling unit, the real manufacture since 2007 in Guangdong China.

We are in the Air conditioning and Refrigeration Exhibition in 2009

Products in workshop
