Silica Gel Rotor

Silica Gel Rotor

Silica gel rotor in our factory means the desiccant rotors, silica gel dehumidifying rotors. Silica gel is one good and effective moisture adsorption medium, when the hot air with around 120℃ can be regenerative. For some passive desiccant rotors, the regenerative temperature with 60℃-80℃.

Ordinary silica gel rotors and its rust-proof cassette

Description

The core structure of silica gel rotor is a constantly rotating honeycombed dehumidification rotor. It is the most critical part of the moisture absorption in high standard dehumidifier system. Silica gel rotors are made of glass fiber as the carrier and composite with active silica gel.

On both sides of the rotor, diaphragm made of good quality sealing silicone rubber divide the rotors entire surface into two sectors: a 270 radian degree air treatment sector and a 90 radian degree regeneration sector. All parts in the rotors are high temperature resistance with 300℃.

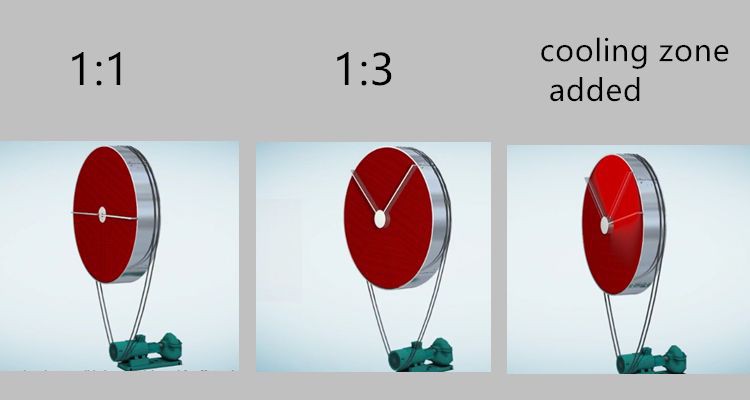

The rotors partition used in the dehumidification system is not absolute. In addition to the vast majority of 1:3 partitions, it can also be divided into 1:1 or add cooling zones to meet different dehumidification requirements.

Foshan ECOTECH silica gel rotor of PPS series, it has up to 82% of active silica gel gluing rate, so it has excellent moisture absorption ability. They can meet the most applications of dehumidification requirements. At the same time, they also have excellent fire resistance, the combustion index and smoke index both are zero.

Construction and Details

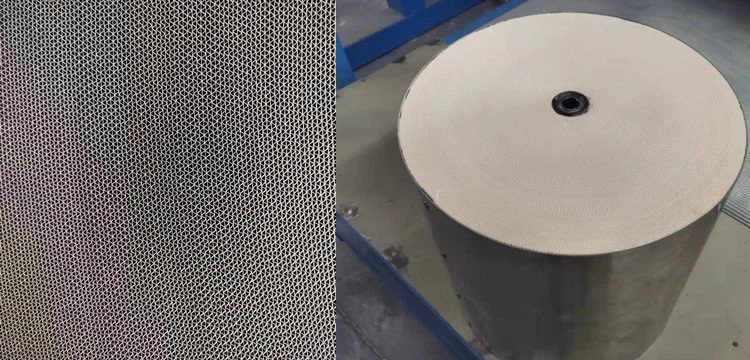

Honeycomb nest composition with silica gel desiccant medium

Construction of skeleton and stainless steel rim, high temperature resistance sealing strip

More type of desiccant rotors from our workshop

China Foshan ECOTECH can customize various specifications and sizes of silica gel rotors according to customers requirements, so as to meet the current majority of dehumidifier rotors replacement needs. Our products can be the replacement unit of Proflute Silica Gel Rotor.

Our Workshop
