Regenerative Desiccant Air Dryer in our factory, that are some desiccant rotors and desiccant wheels. They play the most important roles in large air volume dehumidifying system, like as in the industry dehumidifying, commercial air desiccant system and so on.

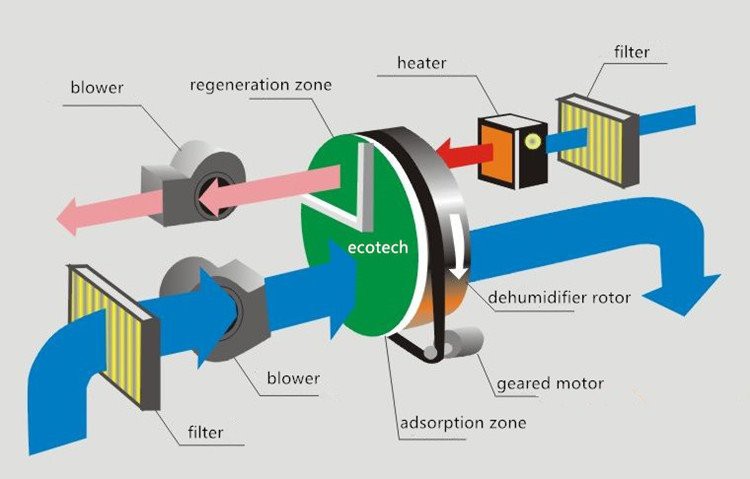

The desiccant air dryer slowly rotates with 8-12rph to do extraction and adsorption to the moisture in the air, when moisture adsorption with saturation, that needs the hot air with around 140-200 degrees to do regeneration with desorption.

Hot air of 140-200 degrees can make the moisture being absorbed in the nest to evaporation and as to renew the desiccant air dryer dehumidification ability. At the same time, the regenerative air becomes wet air being discharged to outdoors by a regenerative blower. So this is one of dynamic and air to air regenerative desiccant air dryer processing.

Generally, there are three models for the regenerative and adsorption ratio for the Regenerative Air Dryer working system. Low temperature of 60-80 degrees with 1:1 of passive desiccant wheel, hot air regenerative with 1:3 design in most case, and cooling zone being added in super desiccant air dehumidifying system.

Construction and Details

Honeycomb structure greatly adhere the hygroscopic medium,meanwhile increase the contact surface between wet air and hygroscopic medium, with this way, that is not only provide the desiccant efficiency in dehumidifying system, but also the honeycomb structure with good strength to make the regenerative desiccant dryer being applied in different complex working environment.

Regenerative Desiccant Air Dryer always strong structure

Strong Cassette and popular regenerative desiccant air dryer

Various kinds of regenerative desiccant air dryer unit for sales in our workshop

We are specialized in making the regenerative desiccant air dryer wheels and rotors, Energy Recovery Wheels, and rotary heat exchanger and so on. Foshan ECOTECH, the manufacturer of air handling units in Foshan China with 15 years.
