Air Dryer Desiccant Replacement

Air Dryer Desiccant Replacement

Almost for all rotary dehumidifying system or rotary industry dehumidifier, that need the air dryer desiccant replacement units. In our factory, we provide all kinds of with different specifications air dryer desiccant replacement units.

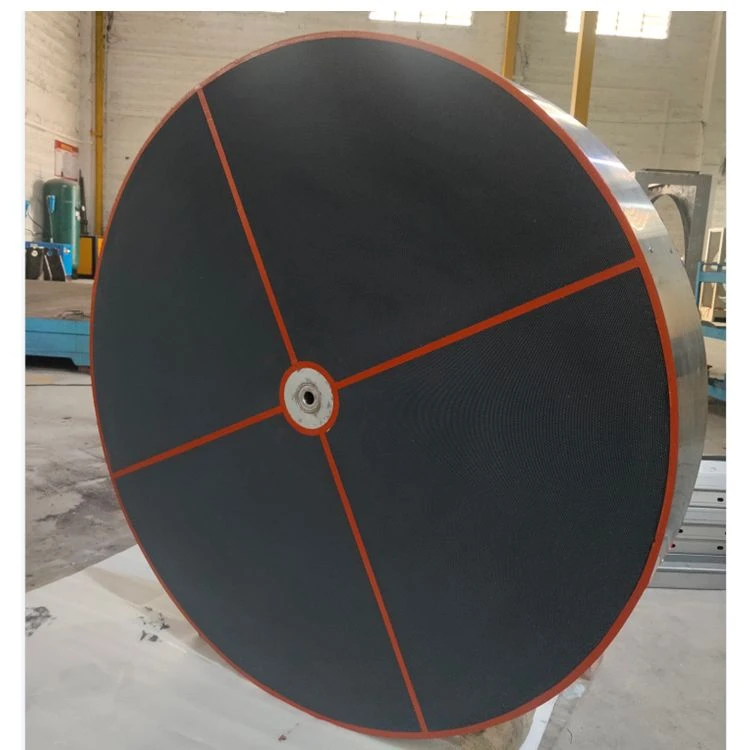

Our Air Dryer Desiccant Replacement units, we call them with desiccant wheels and dehumidification rotors. The old desiccant fittings can be replaced by our new desiccant wheels to renew the dehumidifying performance.

Our desiccant wheels are made with honeycomb glass fiber, high efficiency medium of active silica gel and molecular sieve, equipped with steel central spokes plate and outer runner ring. Both ends of the central hub are equipped with a pair of fully enclosed ball bearings. Sometimes, the flanges are also equipped around the outer rim plate.

Air Dryer Desiccant Replacement wheels, they can be customized with cassette box or without cassette box. It's possible to keep the old cassette box in its original position and only replace the central desiccant wheel. But the old cassette box must ensure the replacement wheel with well fixed to avoid axial movement. As far as possible, the driving force should be uniform distributed on the outer circle of the wheel, At the same time, the sealing around the wheel the air treatment and regeneration zone should be done well.

Of course, we also customized make the complete set of the air dryer desiccant replace unit together with the cassette box, gear and motor. Our desiccant wheels are the replacement of Munters Air Dryer.

Raw material of nest glass fiber

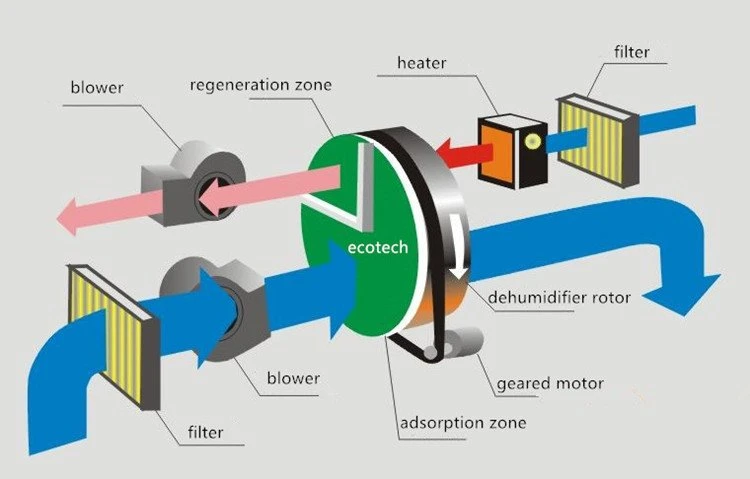

Air Dryer Desiccant Replacement construction details

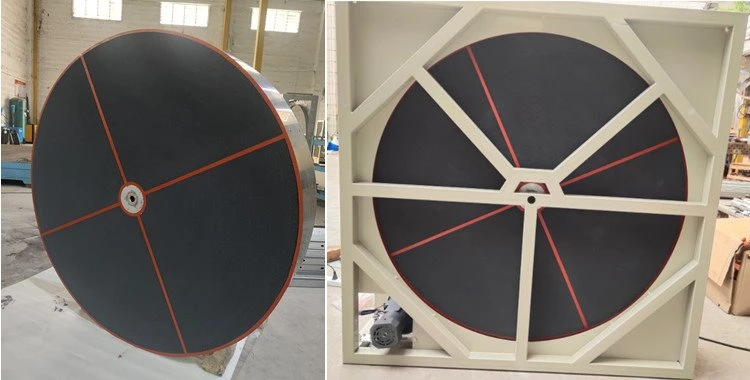

Strong Cassette standard Air Dryer Desiccant Replacement wheel

Please not, all of our desiccant wheel cassette boxes use three-phase deceleration motors (380V, 50HZ). The wiring should be correct connected according to the motor wiring diagram and the rotating direction specified on the label.

Our Workshop

Various kinds of Air Dryer Desiccant Replacement wheels in our workshop
