Window Dehumidifier Units

Window Dehumidifier Units

We are from the manufacturer of window dehumidifier units in Nanhai town of Foshan China with 15 years. In many manufacturing industry, to get the extremely dry air, window dehumidifier units are the key parts, like as in the Pharmaceutical industry

Food processing, flavor and spice production, etc, it is certain, in these industry, the window dehumidifier units will be used in constant temperature and constant humidity system.

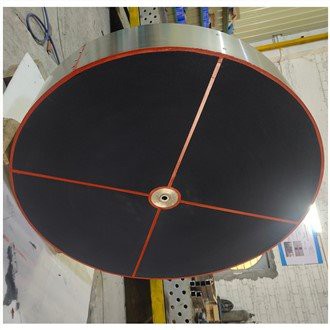

Window dehumidifier units, they are one type of constantly rotating honeycombed desiccant wheels. They are the critical parts of the moisture absorption in high standard dehumidifier system, made of glass fiber as the carrier and composite with active silica gel or molecular sieve.

In the slow rotational works, the wheel will pass through two sectors of a 270 radian adsorption sector and a 90 radian regeneration sector.This is the most common mode in commercial dehumidifying system. We call it by 1:3 mode.

When the sectors with 180 radian adsorption sector and 180 radian regeneration sector, that is the passive dehumidifier system, we called it low temperature regeneration of 1:1 mode.

When super desiccant air requirement in the dehumidifier system, the cooling section will be added into the window units. With this mode, the desiccant air dew point can reach -76.8 degrees Celsius

For our window dehumidifier units, the dehumidification and regeneration processes occur simultaneously, the air is constantly dried and the wheel is constantly regenerated.

The rotating speed is 8-12 RPM, and the power required is very small, depends on the wheels different diameter, the rotating power is around from 15W to 200W.

Construction and Details

Window dehumidifier units construction details of long life using, stable operating

The most popular of window dehumidifier unit with its cassette case

Window units with flange on the outer rim plate

Customized made all kinds of window desiccant units in our workshop

If you need to customized other type of window dehumidifier units, we are the right factory to you, 15 years located in Foshan Guangdong China
