Rotary Recuperator

Rotary Recuperator

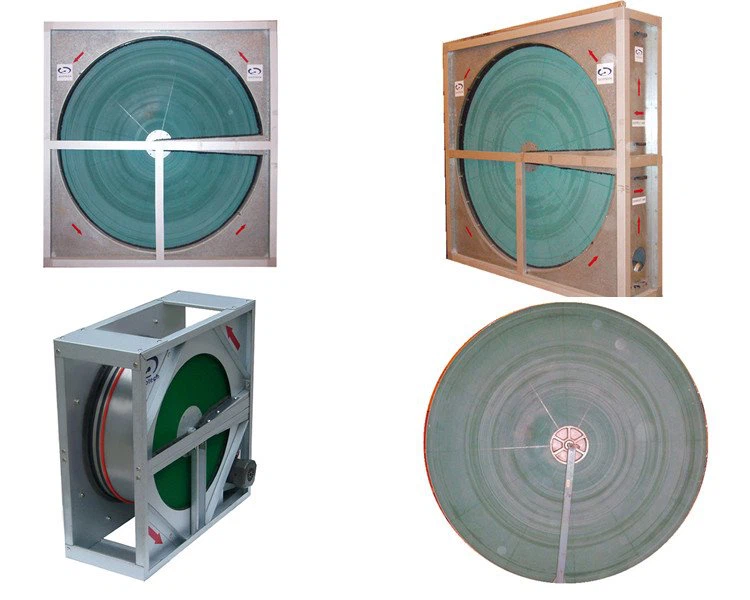

Rotary Recuperator is air recuperator, it's one of rotary type energy recovery air handling unit from China ECOTECH factory. Honeycomb thermal storage core and composite with molecular sieve make them with high efficiency in heat recovery and humidity transfer.

Honeycomb cellular rotary recuperator with the feature of heat storage, hygroscopic, heat transfer, high-quality huge contact area for air, so that it has the excellent characteristics of sensible heat and latent energy recuperation.

By constantly changing the airflow direction and double cleaning fans in the rotary recuperator body ensures the best effect of self-cleaning characteristics. Although our rotary recuperator cannot completely prevent cross-contamination of dust and pollutants from exhaust air to fresh air, but the 10-degree clean surface can limits pollution rate to 0.04%.

Rotary recuperator from China ECOTECH factory have following features

1. The wheel core is available for sensible heat and latent heat for optional

2. The Cellular aperture heights are available in 1.8mm and 2.5mm or customized to other specifications

3. The thickness of the rotary wheel is 200mm or 270mm

4. The cassette box is available in galvanized plate, cold rolled plate or stainless steel

5. Wheel diameters are available from 200mm to 5000mm

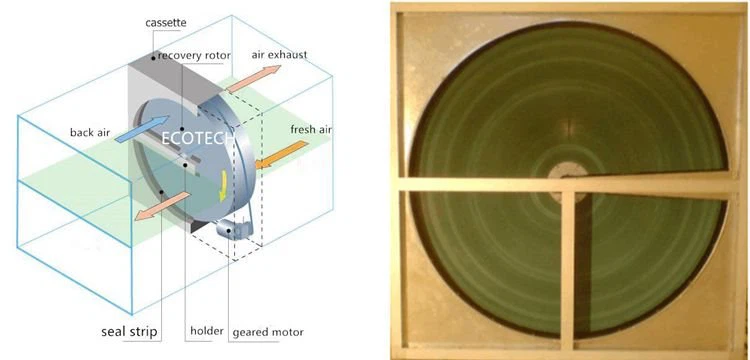

Air recuperator cassette box structure as following

When air handling volume with too large requirement, the recovery core unit can be designed with segmented type.

Attention for installation of split type rotary recuperator

1. Our factory will provide all the accessories required for installation, such as 8pcs M12*45 and 4pcs M10*75 bolts and quantities of M5*16 large round head self-tapping screws.

2. Because the split type wheel is usually large in volume and heavy in weight, lifting equipment and tools are needed for installation

3. After installing the reduction motor and belt, switch on the 380V power supply for operation and debugging, which requires no abnormal sound and collision or friction sound.

We are in the Air conditioning and Refrigeration Exhibition in 2009

Products in workshop
